[May 16, 2021]

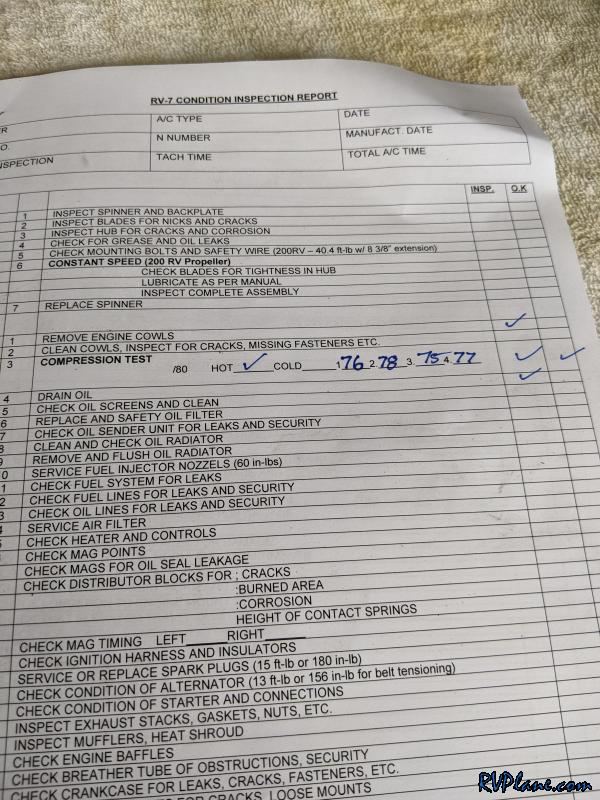

I started off my 2021 annual with a quick flight to warm up the oil temps. With the engine warm, I performed a compression check and I am extremely happy with the numbers - 76/78/75/77.

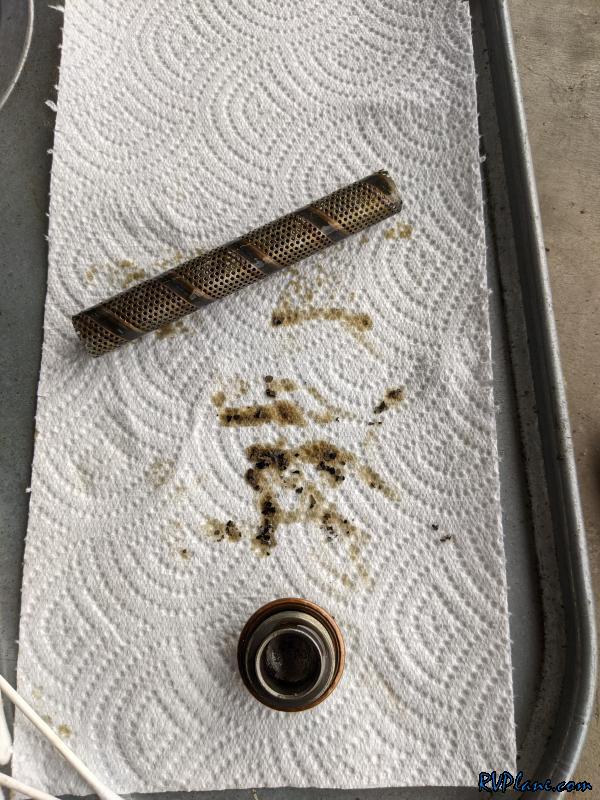

I continued with my inspection checklist while the engine cooled down. Once at a reasonable temperature, I pulled the oil screen. I was a bit alarmed at first with the debris found in it, but under closer inspection, it was non-ferrous, and also not metal. All of it could be easily cut with a blade. This has to be the excess Permatex sealant I used on the oil sump a few years ago.

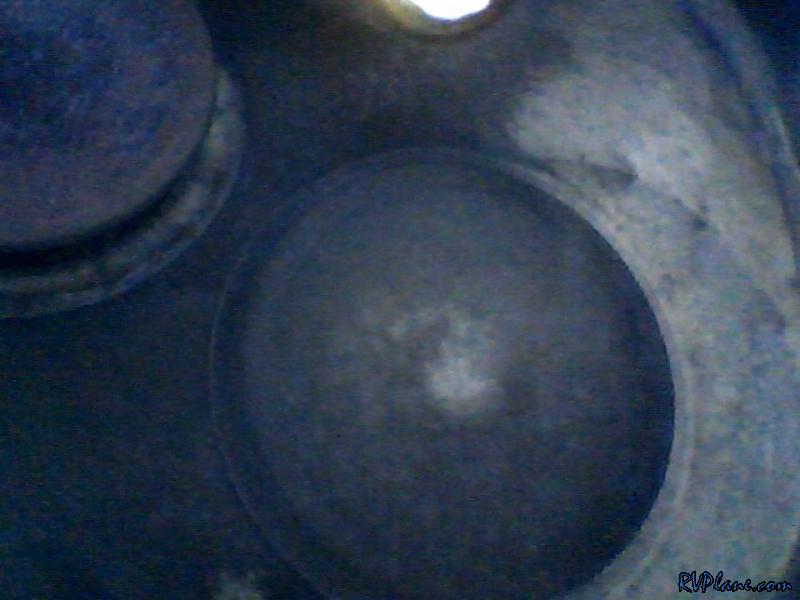

Below are the borescope pictures of the valves

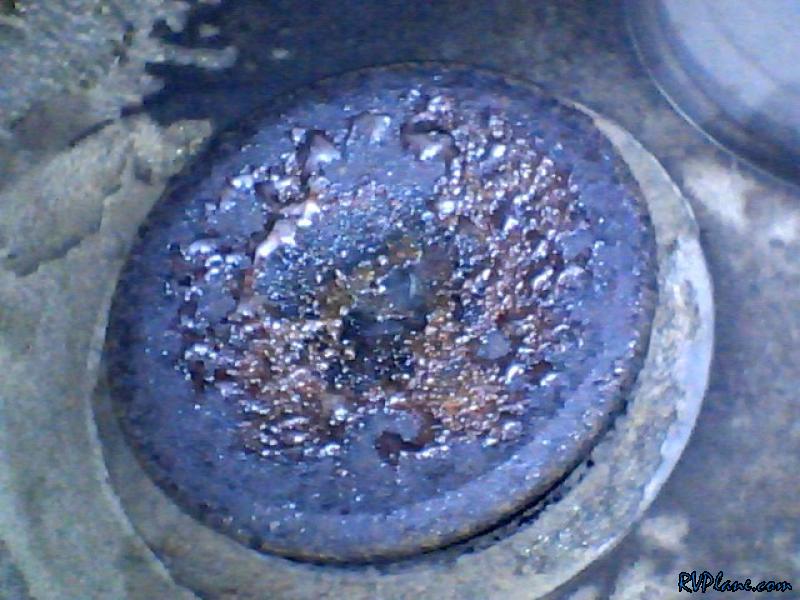

#1 Exhaust

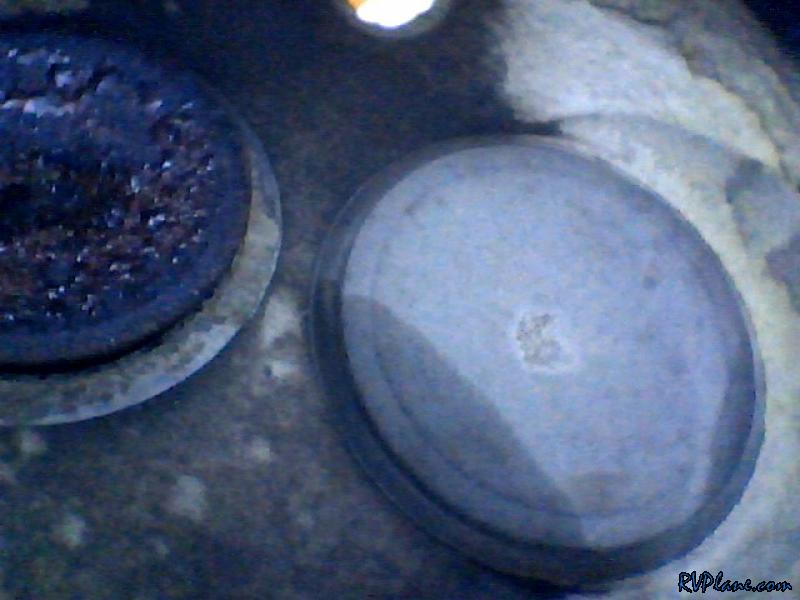

#1 Intake

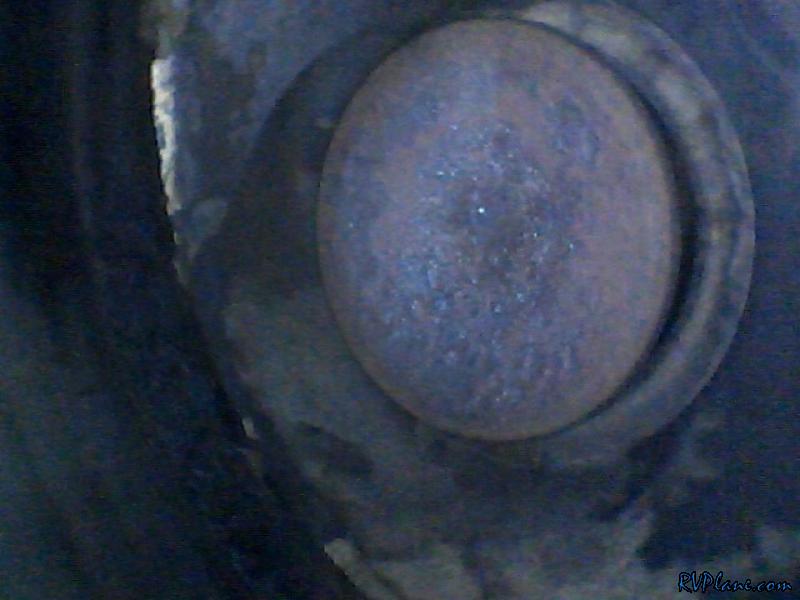

#2 Exhaust


#2 Intake

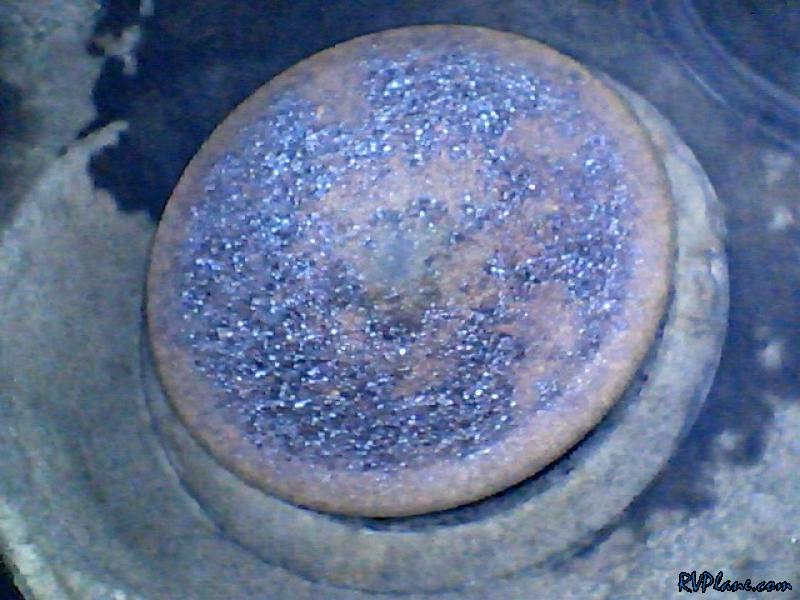

#3 Exhaust

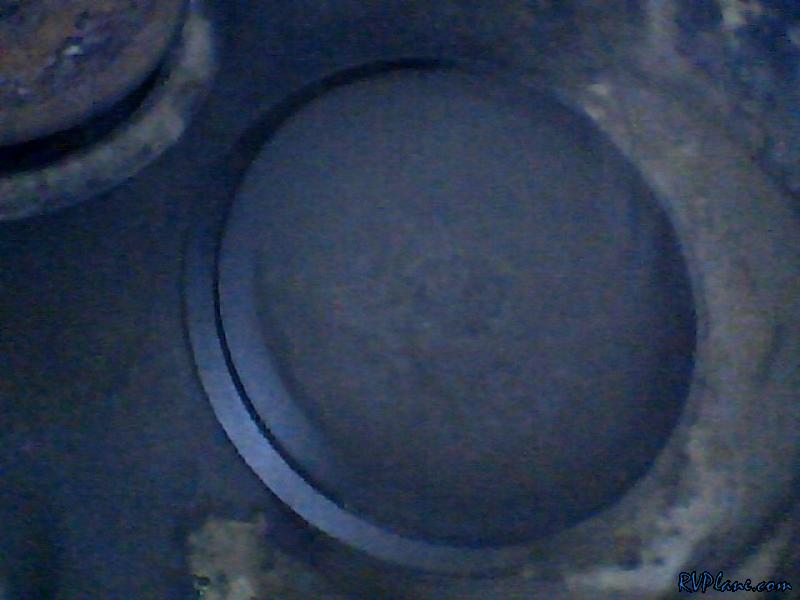

#3 Intake


#4 Exhaust

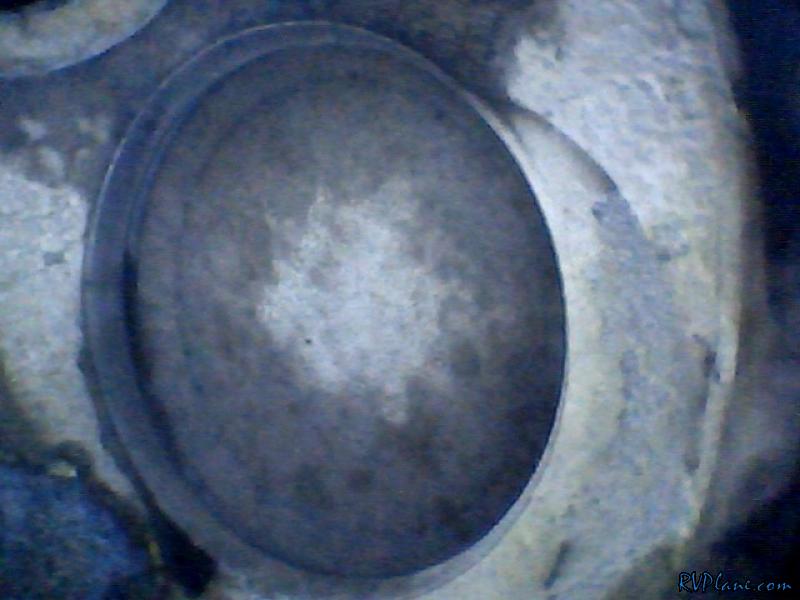

#4 Intake
